Stainless Steel Electrical Enclosures
Stainless Steel Electrical Enclosures are designed to house a variety of electrical equipment in extreme environments. They comply to IEC/EN 62208, IEC/EN 61439 and IEC/EN/AS 60529 up to IP66 IK10 and are certified by an independent accredited test laboratory. Our stainless steel electrical enclosures are designed in Australia and precision manufactured to the highest standards using world-class international manufacturing facilities in Europe.
IP66 Stainless Steel Electrical Enclosures

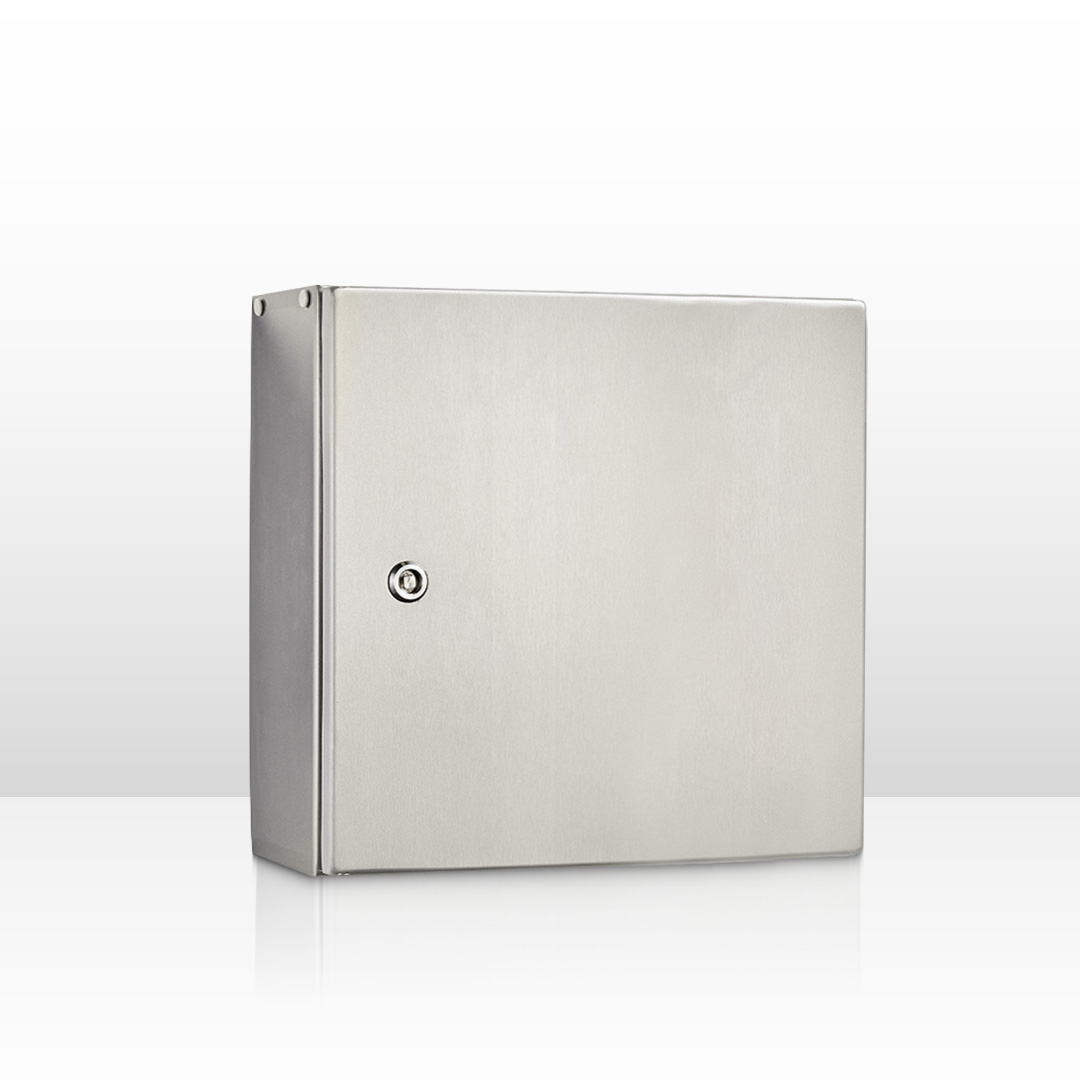

The SS1 range of stainless steel electrical enclosures are rated for protection up to IP66. This range is wall-mounted, grade 304 or 316 stainless steel, single door construction suitable for extreme duty applications.
Features & Specifications
Protection: IP66 IK10 (NEMA 4x)
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, UL, RoHS, CE, UKCA
IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 6 kV
Rated Current: 630A
Rated Peak Withstand Current: 40kA
Rated Short-Time Withstand Current: 20kA (Busbar)
Rated Conditional Short Circuit Current: 20kA
Rated Frequency: 50Hz
Material:
– Body: 1.5mm Stainless Steel (Grades 304 and 316 available)
– Door: 1.5mm Stainless Steel (Grades 304 and 316 available)
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The robust monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel (Grade 304 is also available). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:
The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins (Grade 304 is also available). The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.
Device Mounting Plate:
The device mounting plate is galvanised steel sheet. It is pressed to provide strength and is pre-fitted into the enclosure.
Certificates:
IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low voltage switchgear and controlgear assemblies: Certificate AB-0341-T,
23-297-R1-N1-1
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1
UL: Listing Number E534557
Products are manufactured to Quality, Safety and Environmental standards.
IP66 304 Stainless Steel
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | SolidWorks |
---|---|---|---|---|---|
SKU | H x W x D | *.dwg | *.sldprt | ||
IP-304-302015 | 300 x 200 x 150 | 2D | 3D | ||
IP-304-303015 | 300 x 300 x 150 | 2D | 3D | ||
IP-304-303020 | 300 x 300 x 200 | 2D | 3D | ||
IP-304-403015 | 400 x 300 x 150 | 2D | 3D | ||
IP-304-403020 | 400 x 300 x 200 | 2D | 3D | ||
IP-304-404020 | 400 x 400 x 200 | 2D | 3D | ||
IP-304-504020 | 500 x 400 x 200 | 2D | 3D | ||
IP-304-504025 | 500 x 400 x 250 | 2D | 3D | ||
IP-304-505020 | 500 x 500 x 200 | 2D | 3D | ||
IP-304-505025 | 500 x 500 x 250 | 2D | 3D | ||
IP-304-604020 | 600 x 400 x 200 | 2D | 3D | ||
IP-304-604025 | 600 x 400 x 250 | 2D | 3D | ||
IP-304-604030 | 600 x 400 x 300 | 2D | 3D | ||
IP-304-606020 | 600 x 600 x 200 | 2D | 3D | ||
IP-304-606030 | 600 x 600 x 300 | 2D | 3D | ||
IP-304-606040 | 600 x 600 x 400 | 2D | 3D | ||
IP-304-705025 | 700 x 500 x 250 | 2D | 3D | ||
IP-304-804030 | 800 x 400 x 300 | 2D | 3D | ||
IP-304-806025 | 800 x 600 x 250 | 2D | 3D | ||
IP-304-806030 | 800 x 600 x 300 | 2D | 3D | ||
IP-304-808030 | 800 x 800 x 300 | 2D | 3D | ||
IP-304-1006030 | 1000 x 600 x 300 | 2D | 3D | ||
IP-304-1008030 | 1000 x 800 x 300 | 2D | 3D | ||
IP-304-1008040 | 1000 x 800 x 400 | 2D | 3D | ||
IP-304-1208030 | 1200 x 800 x 300 | 2D | 3D | ||
IP-304-1408040 | 1400 x 800 x 400 | 2D | 3D | ||
IP-304-1608040 | 1600 x 800 x 400 | 2D | 3D | ||
IP-304-20010040 | 2000 x 1000 x 400 | 2D | 3D |
IP66 316 Stainless Steel
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | SolidWorks |
---|---|---|---|---|---|
SKU | H x W x D | *.dwg | *.sldprt | ||
IP-SS404030 | 400 x 400 x 300 | 2D | 3D | ||
IP-SS1408040 | 1400 x 800 x 400 | 2D | 3D | ||
IP-SS1608040 | 1600 x 800 x 400 | 2D | 3D | ||
IP-SS20010040 | 2000 x 1000 x 400 | 2D | 3D | ||
IP-SS302015 | 300 x 200 x 150 | 2D | 3D | ||
IP-SS302515 | 300 x 250 x 150 | 2D | 3D | ||
IP-SS303015 | 300 x 300 x 150 | 2D | 3D | ||
IP-SS303020 | 300 x 300 x 200 | 2D | 3D | ||
IP-SS403015 | 400 x 300 x 150 | 2D | 3D | ||
IP-SS403020 | 400 x 300 x 200 | 2D | 3D | ||
IP-SS404020 | 400 x 400 x 200 | 2D | 3D | ||
IP-SS504020 | 500 x 400 x 200 | 2D | 3D | ||
IP-SS504025 | 500 x 400 x 250 | 2D | 3D | ||
IP-SS505020 | 500 x 500 x 200 | 2D | 3D | ||
IP-SS505025 | 500 x 500 x 250 | 2D | 3D | ||
IP-SS604020 | 600 x 400 x 200 | 2D | 3D | ||
IP-SS604025 | 600 x 400 x 250 | 2D | 3D | ||
IP-SS604030 | 600 x 400 x 300 | 2D | 3D | ||
IP-SS606020 | 600 x 600 x 200 | 2D | 3D | ||
IP-SS606030 | 600 x 600 x 300 | 2D | 3D | ||
IP-SS606040 | 600 x 600 x 400 | 2D | 3D | ||
IP-SS705025 | 700 x 500 x 250 | 2D | 3D | ||
IP-SS804030 | 800 x 400 x 300 | 2D | 3D | ||
IP-SS806025 | 800 x 600 x 250 | 2D | 3D | ||
IP-SS806030 | 800 x 600 x 300 | 2D | 3D | ||
IP-SS806040 | 800 x 600 x 400 | 2D | 3D | ||
IP-SS808030 | 800 x 800 x 300 | 2D | 3D | ||
IP-SS1006030 | 1000 x 600 x 300 | 2D | 3D | ||
IP-SS1008030 | 1000 x 800 x 300 | 2D | 3D | ||
IP-SS1008040 | 1000 x 800 x 400 | 2D | 3D | ||
IP-SS1208030 | 1200 x 800 x 300 | 2D | 3D |
IP66 304 Stainless Steel (Landscape Orientation)
IP66 316 Stainless Steel (Landscape Orientation)
IP55 Stainless Steel Electrical Enclosures
The SS2 range of stainless steel electrical enclosures are rated for protection up to IP55. This range is wall-mounted, grade available in 304 or 316 stainless steel, double door construction suitable for extreme duty applications.
Features & Specifications
Protection: Complies with IP55 IK10 (NEMA 3x)
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS, CE, UKCA
IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 6 kV
Rated Current: 630A
Rated Peak Withstand Current: 40kA
Rated Short-Time Withstand Current: 20kA (Busbar)
Rated Conditional Short Circuit Current: 20kA
Rated Frequency: 50Hz
Material:
– Body: 1.5mm Stainless Steel (Grades 304 and 316 available)
– Door: 1.5mm Stainless Steel (Grades 304 and 316 available)
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The robust monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel (Grade 304 is also available). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Double Doors:
The surface mounted doors are 1.5mm Grade 316/316L Stainless Steel (Grade 304 is also available) and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. Doors are designed for a 110° opening. Each door contains integral cable management rail studs and M6 earth studs. The cable management rails are removable to provide more space for control components.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Lock:
3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Certificates:
IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1610.05.01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low voltage switchgear and controlgear assemblies: Certificate AB-0341-T,
23-314-R1-N1-1
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1
Products are manufactured to Quality, Safety and Environmental standards.
IP55 304 Stainless Steel
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | SolidWorks |
---|---|---|---|---|---|
SKU | H x W x D | *.dwg | *.sldprt | ||
IP-304-10010030 | 1000 x 1000 x 300 | 2D | 3D | ||
IP-304-10010040 | 1000 x 1000 x 400 | 2D | 3D | ||
IP-304-12010030 | 1200 x 1000 x 300 | 2D | 3D | ||
IP-304-12010040 | 1200 x 1000 x 400 | 2D | 3D | ||
IP-304-12012030 | 1200 x 1200 x 300 | 2D | 3D | ||
IP-304-12012040 | 1200 x 1200 x 400 | 2D | 3D |
IP55 316 Stainless Steel
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | SolidWorks |
---|---|---|---|---|---|
SKU | H x W x D | *.dwg | *.sldprt | ||
IP-SS10010030 | 1000 x 1000 x 300 | 2D | 3D | ||
IP-SS10010040 | 1000 x 1000 x 400 | 2D | 3D | ||
IP-SS12010030 | 1200 x 1000 x 300 | 2D | 3D | ||
IP-SS12010040 | 1200 x 1000 x 400 | 2D | 3D | ||
IP-SS12012030 | 1200 x 1200 x 300 | 2D | 3D | ||
IP-SS12012040 | 1200 x 1200 x 400 | 2D | 3D |
IP55 304 Stainless Steel (Landscape Orientation)
Part Number | Enclosure Size (mm) | Data Sheet | AutoCAD | SolidWorks |
---|---|---|---|---|
SKU | H x W x D | *.sldprt | ||
IP-304-L4010030 | 400 x 1000 x 300 | 3D | ||
IP-304-L4010040 | 400 x 1000 x 400 | 3D | ||
IP-304-L6010030 | 600 x 1000 x 300 | 3D | ||
IP-304-L6010040 | 600 x 1000 x 400 | 3D | ||
IP-304-L4012030 | 400 x 1200 x 300 | 3D | ||
IP-304-L4012040 | 400 x 1200 x 400 | 3D | ||
IP-304-L6012030 | 600 x 1200 x 300 | 3D | ||
IP-304-L6012040 | 600 x 1200 x 400 | 3D |
IP55 316 Stainless Steel (Landscape Orientation)
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | SolidWorks |
---|---|---|---|---|---|
SKU | H x W x D | *.dwg | *.sldprt | ||
IP-SSL4010030 | 400 x 1000 x 300 | 2D | 3D | ||
IP-SSL4010040 | 400 x 1000 x 400 | 2D | 3D | ||
IP-SSL6010030 | 600 x 1000 x 300 | 2D | 3D | ||
IP-SSL6010040 | 600 x 1000 x 400 | 2D | 3D | ||
IP-SSL4012030 | 400 x 1200 x 300 | 2D | 3D | ||
IP-SSL4012040 | 400 x 1200 x 400 | 2D | 3D | ||
IP-SSL6012030 | 600 x 1200 x 300 | 2D | 3D | ||
IP-SSL6012040 | 600 x 1200 x 400 | 2D | 3D |
