Pole Mounted Field Cabinets

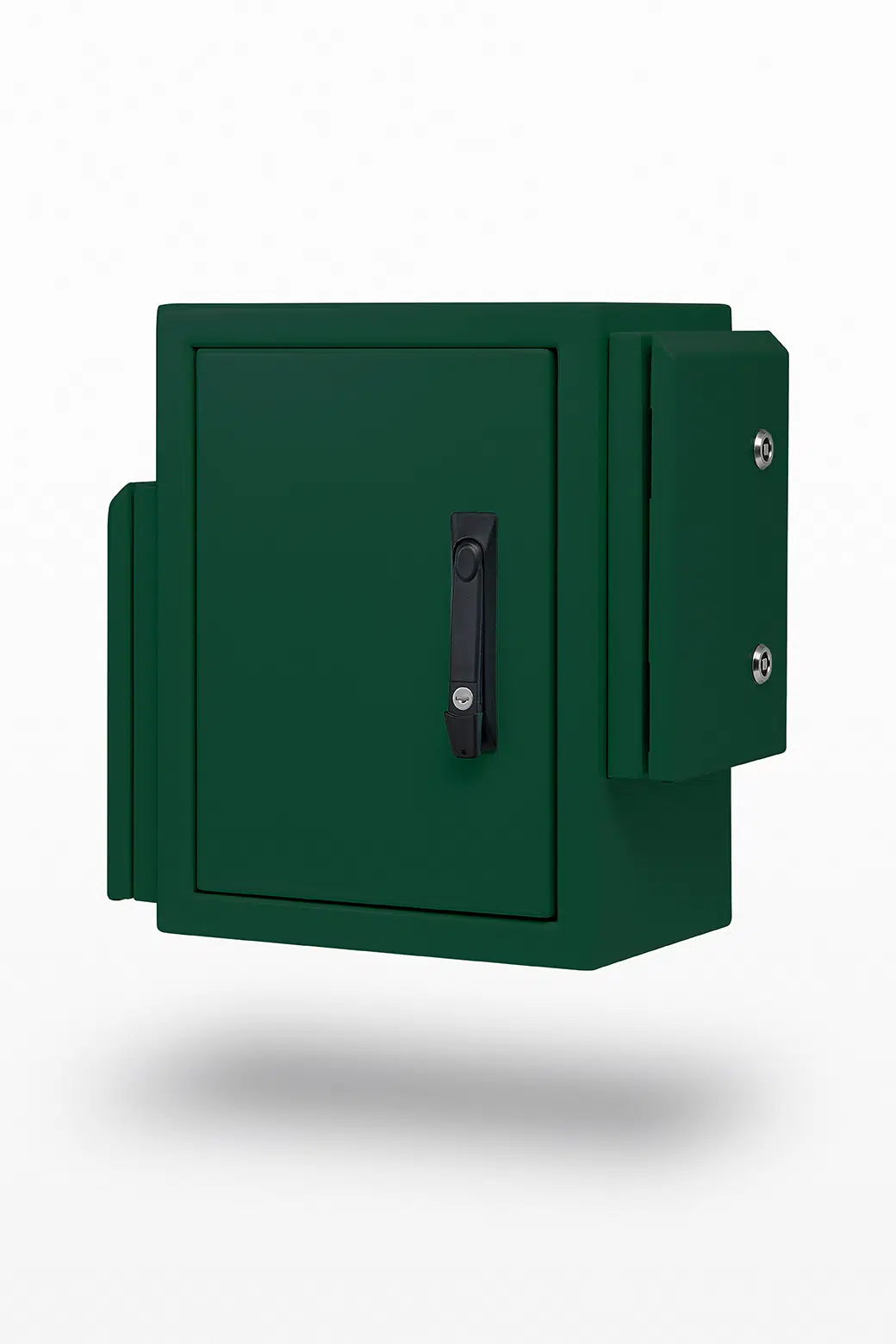

Pole-Mounted Field Cabinets – Steel

Pole-Mounted Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including general industrial, infrastructure, road/traffic management and intelligent transport systems.

Features and Specifications

Protection: IP66 IK10 (Non-Ventilated); IP55 IK10 (Ventilated)
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, RoHS, CE, UKCA

Material:

– Body: 1.5mm galvanised steel sheet
– Doors: 2.0mm galvanised steel sheet
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Integral device plate mounts and M6 earth stud are included. Fan/filter cutouts and hinged vent hoods are provided as standard. Non-ventilated option is also available.(Fans and filters and ordered separately).

Door:

The front door is fabricated using 2.0mm galvanised steel sheet and is designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The door incorporates concealed removable hinges with captive pins. It is hinged on the left side, designed for a 110° opening and is provided with a heavy duty door stay. An A4 plan pocket is provided.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Lock:

The door includes a 3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard. Powder coated RAL9010 pure white.

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour

RAL7035 Grey or RAL6005 Moss Green. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

Certificates

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 2009.33.02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

REQUEST PRICE & AVAILABILITY
Our sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

9 + 7 =

Pole Mounted Field Cabinet 3

Pole-Mounted Field Cabinets (Non-Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-453522-0450H x 350W x 225D Pole-Mount Field Cabinet (Non-Ventilated)PDFPDF.dwg
IP-654532-0650H x 450W x 325D Pole-Mount Field Cabinet (Non-Ventilated)PDFPDF.dwg
IP-706032-012U x 600W x 325D Pole-Mount Field Cabinet (Non-Ventilated)PDFPDF.dwg

Pole-Mounted Field Cabinets (Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-453522450H x 350W x 225D Pole-Mount Field Cabinet (Ventilated)PDFPDF.dwg
IP-654532650H x 450W x 325D Pole-Mount Field Cabinet (Ventilated)PDFPDF.dwg
IP-70603212U x 600W x 325D Pole-Mount Field Cabinet (Ventilated)PDFPDF.dwg

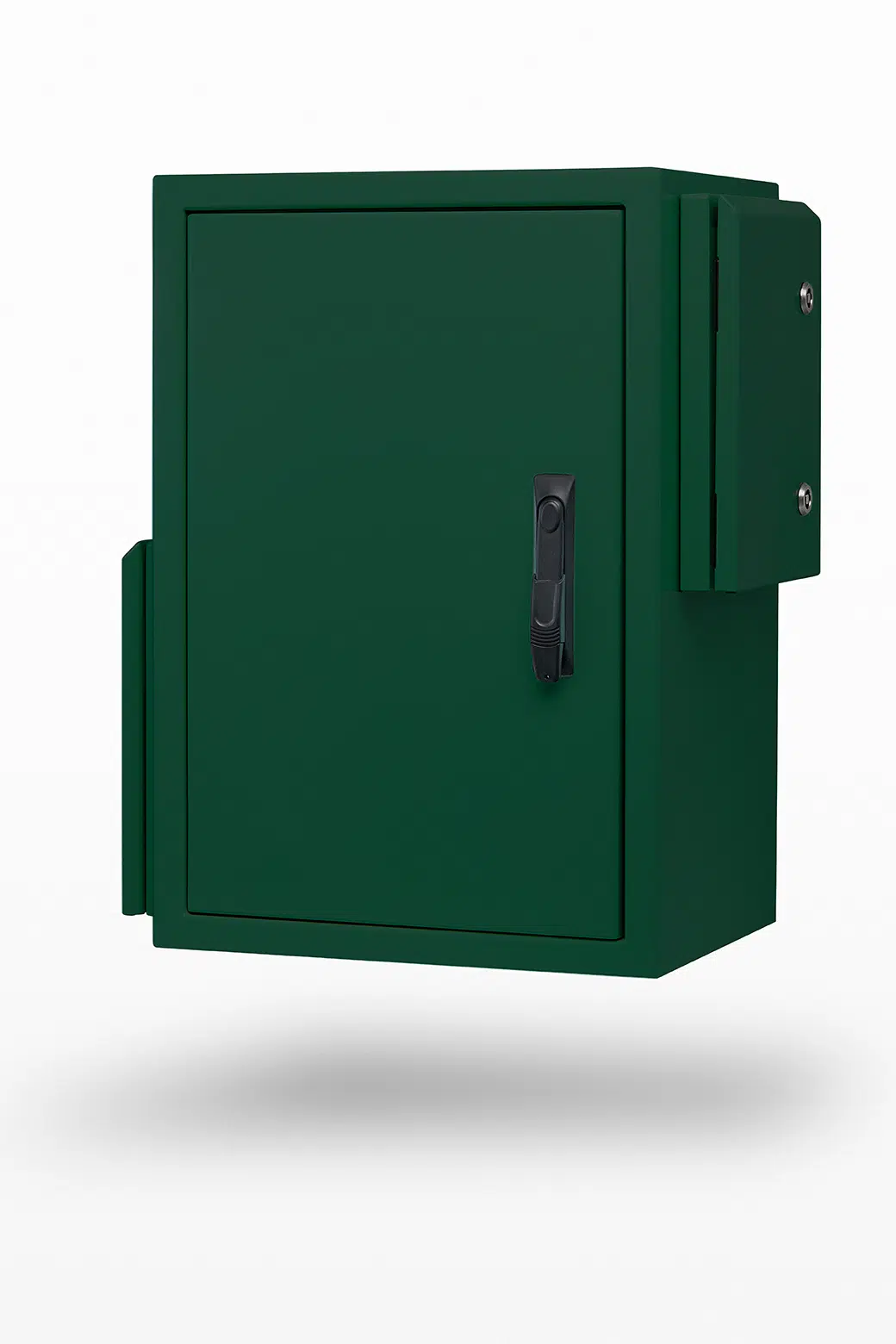

Pole Mount Field Cabinet - 1

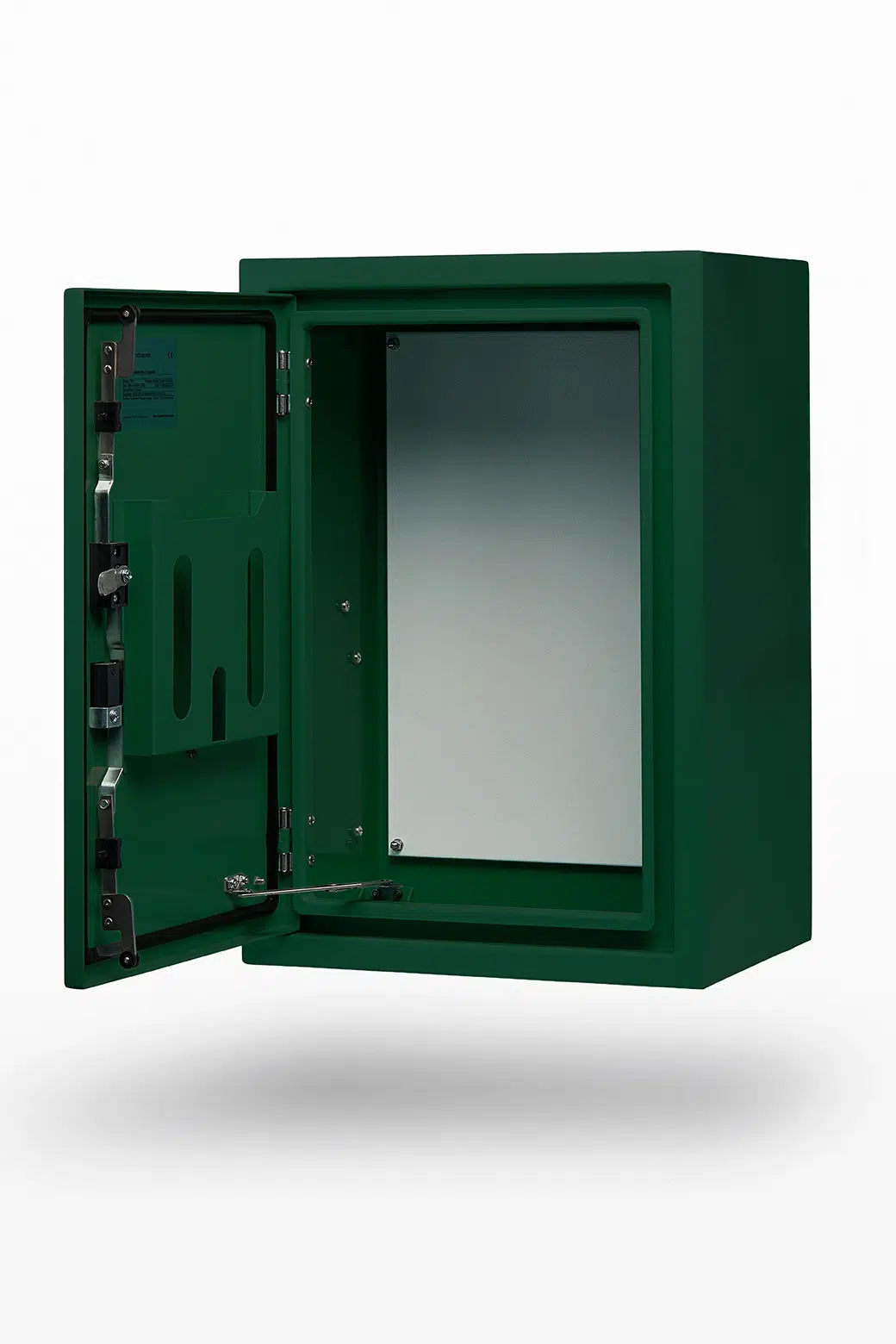

Pole Mount Field Cabinet - 2

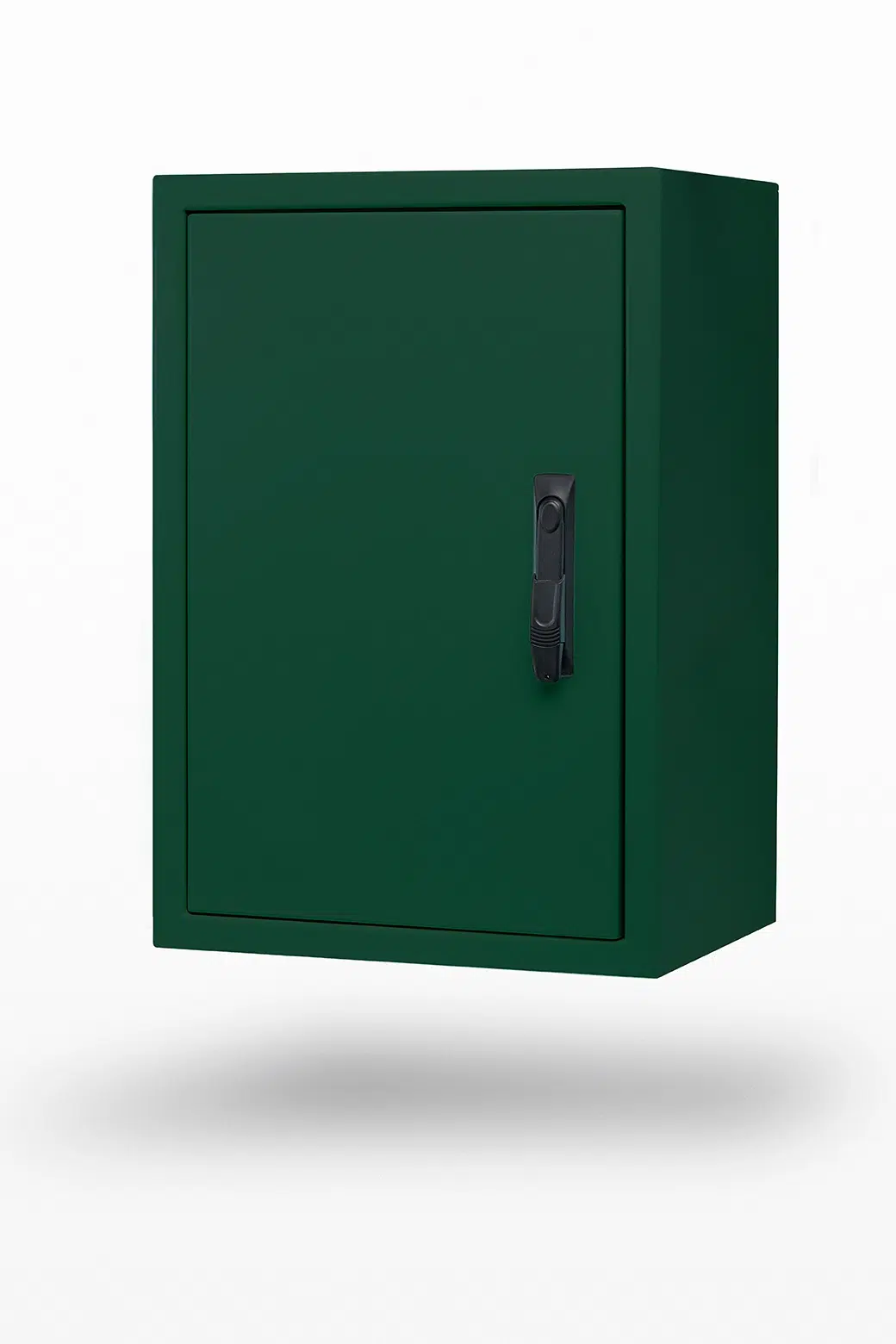

Pole Mount Field Cabinet - 3

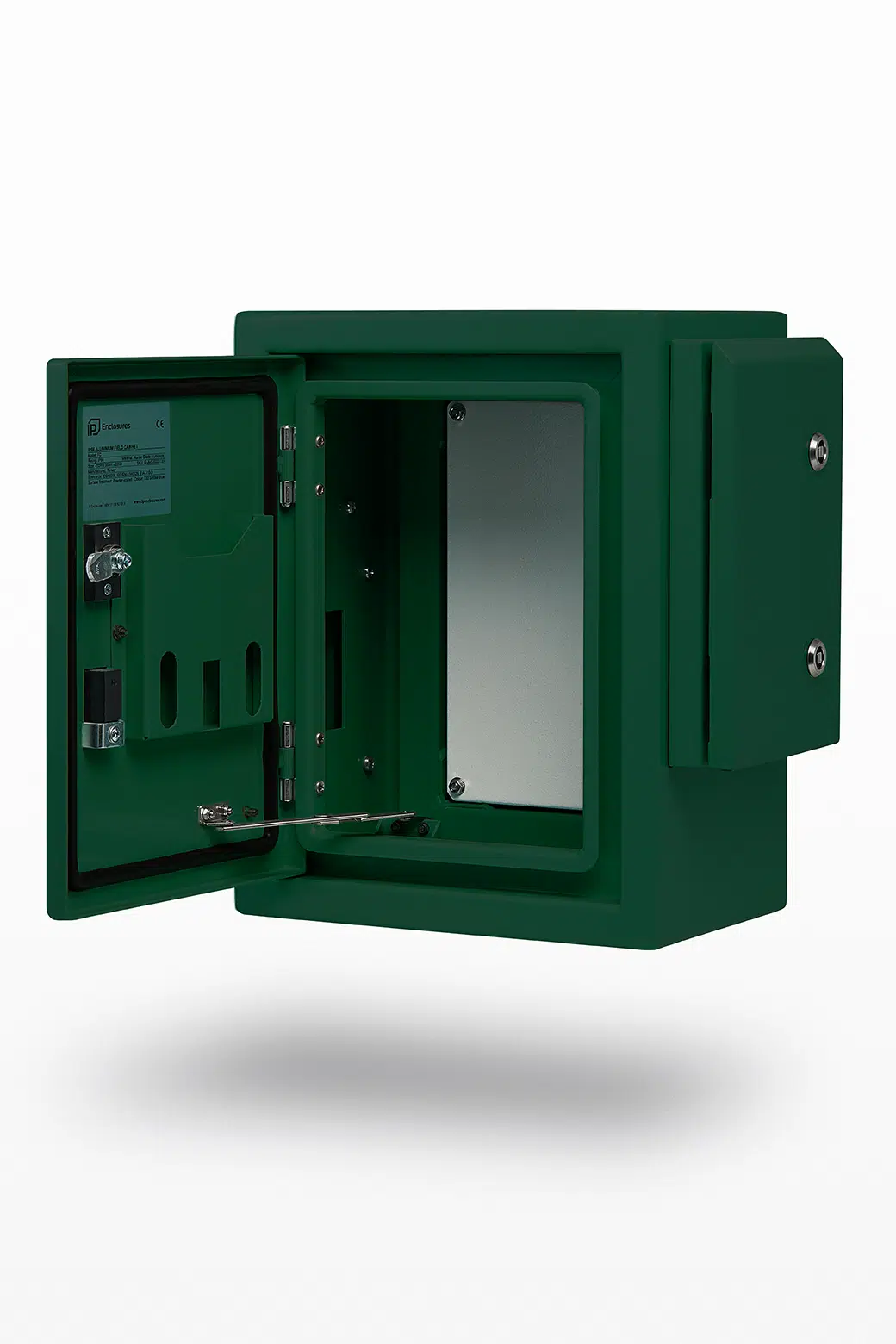

Pole Mount Field Cabinet - 4

Pole-Mount Bracket

The Pole-Mount Bracket is provided with holes and fasteners to attach bracket to the encapsulated threaded nutserts in the back of the field cabinet. Slots are provided in the top, bottom and middle of the bracket to suit Bandit Strap to attach to power poles. Refer to tables above for part numbers.

Material:

Galvanised steel sheet

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour

RAL7035 Grey (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

Pole-Mount Bracket for Field Cabinet
