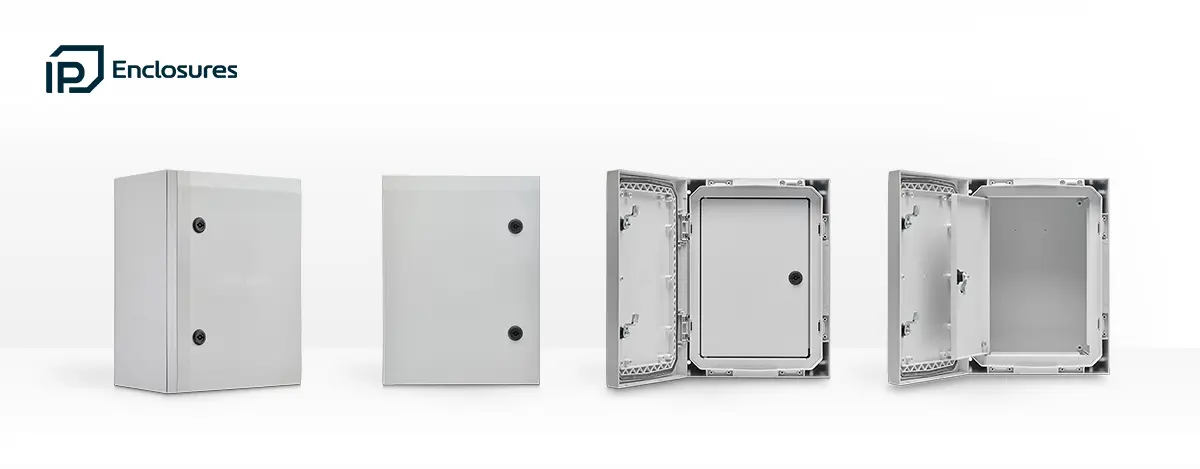

FIBOX ARCA Electrical Enclosures
IP Enclosures has partnered with FIBOX to provide the highest quality non-metallic electrical enclosures available. The full range of FIBOX ARCA Wall-Mounted Electrical Enclosures are now available in UK via all IP Enclosures distributors.
The FIBOX ARCA range is made from High Performance Polycarbonate. High Performance Polycarbonate provides superior corrosion resistance, UV protection and impact resistance, while reducing health risks including skin irritation associatd with working with GRP enclosures. FIBOX High Performance Polycarbonate is the preferred alternatve to GRP.
FIBOX is a global leader in electrical enclosure solutions. For almost 60 years, FIBOX have been pioneering electrical enclosure solutions. FIBOX developed the world’s first modular polycarbonate enclosure and continues to design and innovate. Today, FIBOX are one of the largest electrical enclosure manufacturers in the world and are the leading manufacturer of non-metallic electrical enclosure solutions. FIBOX and IP Enclosures have partnered together to serve customers in UK with a full range of premium-quality enclosures packed with features, all for the protection of electrical and electronic components and systems that help keep the world operating.
FIBOX ARCA IP66 Wall-Mounted Electrical Enclosures
Features & Specifications
Protection: IP66 IK10 (IP65 IK08 with Transparent Door)
Standards: IEC/EN 62208, IEC/EN 61439-1, IEC/EN 61439-4, UL508A
Parameters:
Electrical Insulation: Fully Insulated
Halogen Free (DIN/VDE 0472, Part 815): Yes
UV Resistance: UL 508
Flammability Rating: UL 94 5VA
Glow Wire Test (IEC 60695): 960C
NEMA Class: NEMA 1, 4, 4X, 12, 13
Temperature °C: -40 to 80
Material:
– Body and Door: High Performance Polycarbonate RAL7035 Light Grey
– Seal: Polyurethane
– Lock: 3mm Double Bit Lock with Key, 2-Point Locking System with Door Guide Included. (Optional Swing Handle – Contact us for details)
REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.
FIBOX ARCA Polycarbonate Enclsoures vs GRP Enclosures
For many compact outdoor and industrial enclosure applications, FIBOX ARCA polycarbonate offers important advantages over traditional GRP alternatives. ARCA combines high impact resistance, UV stability, corrosion resistance, electrical insulation, and lighter weight in a format that is easier to handle, machine, and install.
In applications such as outdoor controls, infrastructure, water, utilities, transport, and solar, these characteristics can help simplify installation while supporting long-term enclosure performance in demanding environments.
| Attribute | Fibox ARCA Polycarbonate | Polyester (GRP) |
|---|---|---|
| Corrosion resistance | Does not rust and is well suited to harsh outdoor and industrial environments | Commonly used in harsh environments, but performance depends on design, resin system, construction, and long-term exposure |
| UV performance | UV-stable high-performance polycarbonate for outdoor use | UV resistance varies by product and formulation |
| Impact performance | High impact resistance, including IK10 on published ARCA configurations | Impact performance varies by product and is often less favourable in compact enclosure handling and installation conditions |
| Weight | Lightweight and easier to transport, mount, and install | Typically heavier |
| Machining and modification | Easier and cleaner to drill, cut, and modify | Can be slower and less convenient to machine, and machining may generate fibreglass dust or fibres that can cause temporary skin irritation during handling. |
| Handling and installation | Practical for field installation and retrofit work | Often heavier and less convenient to handle |
| Surface condition | Clean finished appearance with no fibre exposure during normal handling | Surface finish and fibre-related handling characteristics vary by product |
Australian Support and Supply
FIBOX is supported in Australia through the IP Enclosures supply network, with local technical assistance, product access, and supply support. For pricing, availability, and product enquiries, contact IP Enclosures or submit a quote request above.
