Aluminium Field Cabinets

Field Cabinets and Location Cases – Aluminium

Plinth-Mounted Aluminium Field Cabinets and Location Cases are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.

Features and Specifications

​Protection: IP66 IK10 (Non-ventilated); IP55 IK10 (Ventilated)

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, CE, UKCA

Material:

– Body and Plinth: 2.5mm Marine Grade Aluminium
– Doors: 2.5mm Marine Grade Aluminium
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 5.0mm Aluminium
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 2.5mm marine grade aluminium. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 5.0 mm aluminium split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).

Doors:

The front and rear doors are fabricated using 2.5mm marine grade aluminium and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.

19″ Data Rack Rails:

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Locks:

Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

5mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour

RAL7035 Grey or RAL6005 Moss Green. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

Certificates

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 2009.33.02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

REQUEST PRICE & AVAILABILITY
Our sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

14 + 13 =

IP Enclosures - Aluminium Field Cabinet

Aluminium Field Cabinets (Non-Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-A1077562-018U IP66 Field Cabinet 1075H x 750W x 620D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1077580-018U IP66 Field Cabinet 1075H x 750W x 800D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1377562-024U IP66 Field Cabinet 1375H x 750W x 620D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1377580-024U IP66 Field Cabinet 1375H x 750W x 800D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A13775100-024U IP66 Field Cabinet 1375H x 750W x 1000D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1677562-030U IP66 Field Cabinet 1675H x 750W x 620D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1677580-030U IP66 Field Cabinet 1675H x 750W x 800D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A16775100-030U IP66 Field Cabinet 1675H x 750W x 1000D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1977562-036U IP66 Field Cabinet 1975H x 750W x 620D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A1977580-036U IP66 Field Cabinet 1975H x 750W x 800D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A19775100-036U IP66 Field Cabinet 1975H x 750W x 1000D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A2277562-042U IP66 Field Cabinet 2275H x 750W x 620D Aluminium (Non-Ventilated)PDFPDF.dwg
IP-A2277580-042U IP66 Field Cabinet 2275H x 750W x 800D Aluminium (Non-Ventilated)PDFPDF.dwg

Aluminium Field Cabinets (Ventilated)

Part NumberDescriptionData SheetDrawingDrawing
SKUSizePDFPDF.dwg
IP-A107756218U IP66 Field Cabinet 1075H x 750W x 620D Aluminium (Ventilated)PDFPDF.dwg
IP-A107758018U IP66 Field Cabinet 1075H x 750W x 800D Aluminium (Ventilated)PDFPDF.dwg
IP-A137756224U IP66 Field Cabinet 1375H x 750W x 620D Aluminium (Ventilated)PDFPDF.dwg
IP-A137758024U IP66 Field Cabinet 1375H x 750W x 800D Aluminium (Ventilated)PDFPDF.dwg
IP-A1377510024U IP66 Field Cabinet 1375H x 750W x 1000D Aluminium (Ventilated)PDFPDF.dwg
IP-A167756230U IP66 Field Cabinet 1675H x 750W x 620D Aluminium (Ventilated)PDFPDF.dwg
IP-A167758030U IP66 Field Cabinet 1675H x 750W x 800D Aluminium (Ventilated)PDFPDF.dwg
IP-A1677510030U IP66 Field Cabinet 1675H x 750W x 1000D Aluminium (Ventilated)PDFPDF.dwg
IP-A197756236U IP66 Field Cabinet 1975H x 750W x 620D Aluminium (Ventilated)PDFPDF.dwg
IP-A197758036U IP66 Field Cabinet 1975H x 750W x 800D Aluminium (Ventilated)PDFPDF.dwg
IP-A1977510036U IP66 Field Cabinet 1975H x 750W x 1000D Aluminium (Ventilated)PDFPDF.dwg
IP-A227756242U IP66 Field Cabinet 2275H x 750W x 620D Aluminium (Ventilated)PDFPDF.dwg
IP-A227758042U IP66 Field Cabinet 2275H x 750W x 800D Aluminium (Ventilated)PDFPDF.dwg

Accessories

Part Number -SKUDescription
IP-M6SCREW-CAGENUTM6 Cage Nut & Screw (Pack of 50)
IP-FCDRAWER Laptop Drawer to suit 750W x 620D Field Cabinet
IP-FCSHL7562 Light Duty Shelf to suit 750W x 620D Field Cabinet
IP-FCSHH7562Heavy Duty Shelf to suit 750W x 620D (250kg max. load)
IP-FCSHH7580Heavy Duty Shelf to suit 750W x 800D (250kg max. load)
IP-13762-DPDevice Plate to suit 1375H x 620D Field Cabinet (Side Mounted)
IP-16762-DPDevice Plate to suit 1675H x 620D Field Cabinet (Side Mounted)
IP-19762-DPDevice Plate to suit 1975H x 620D Field Cabinet (Side Mounted)
IP-12RUDP12U Rack Mounted Device Mounting Plate
IP-18RUDP18U Rack Mounted Device Mounting Plate
Non-Ventilated Field Cabinet

(Non-Ventilated)

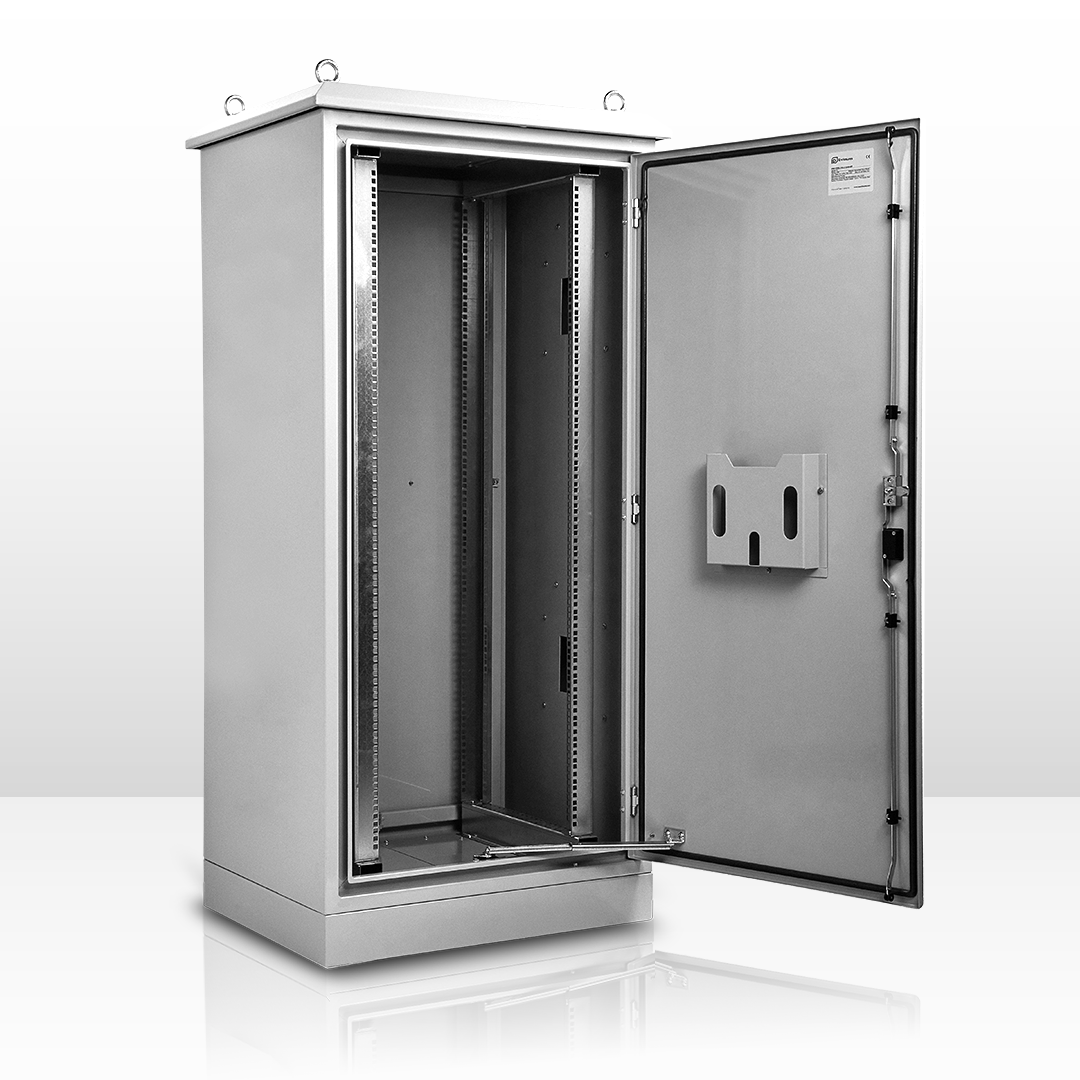

Ventilated Field Cabinet

(Ventilated)

Field Cabinet
Field Cabinet
