Floor Standing Electrical cabinets for low voltage switchgear and controlgear assemblies are floor standing and rated to IP55.

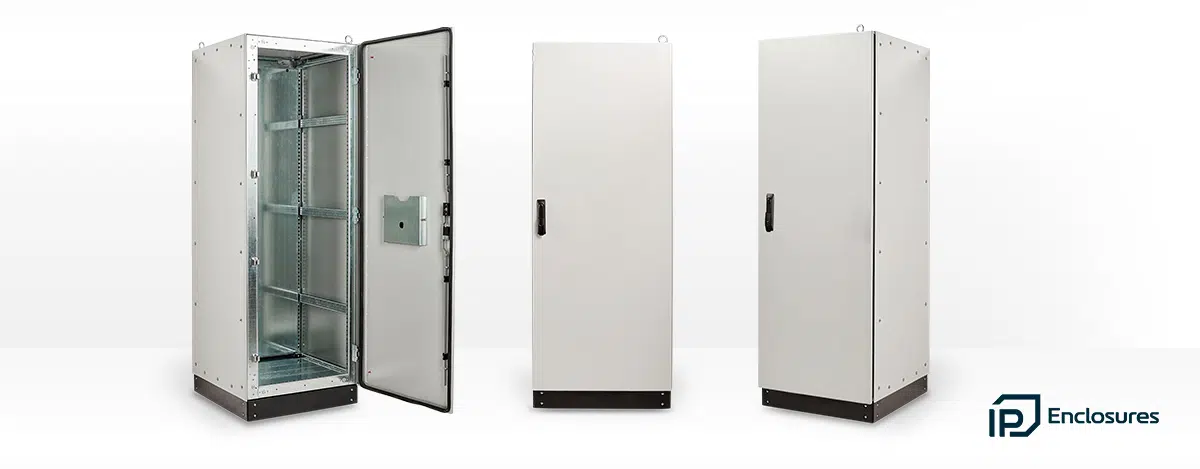

IP55 Floor Standing Electrical Cabinets

The MF1S Range of IP55 floor standing electrical cabinets are suitable for general industrial applications.

Features and Specifications

Protection: IP55 IK10

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS, CE, UKCA

IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Rated Current: 630A |1600A | 4000A
Main Circuit Short-Time Current Withstand: 30kA/1sec | 40kA/1sec | 60kA/1sec
Distribution Circuit Short-Time Current Withstand: 25kA/1sec | 36kA/1sec | 50kA/1sec
Auxilliary Circuit Short-Time Current Withstand: – | 30kA | 40kA/1sec | 36kA/1sec
Neutral Circuit Short-Time Current Withstand: – | 25kA/1sec | 36kA/1sec
Protection Circuit Short-Time Current Withstand: 18kA/1sec | 25kA/1sec | 36kA/1sec
Rated Conditional Short Circuit Current: 36kA/630A, 30kA/400A | 45kA/1600A, 36kA/1250A, 36kA/1000A | 65kA/4000A, 55kA/3200A, 45kA/2500A, 40kA/2000A
Rated Frequency: 50Hz

Material:

– Main Frame: 2.0mm Galvanised Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Powder-Coated Galvanised Steel Sheet
– Front Door: 2.0mm Powder-Coated Galvanised Steel Sheet
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM

Stainless Steel Floor Standing Electrical Cabinets are also available.

Enclosure Main Frame:

The robust modular main structure is fabricated using 2.0mm galvanised steel sheet W Profile system with 20mm hole pattern.

Enclosure Door:

The robust door is fabricated using 2.0mm powder coated galvanised steel sheet and incorporates four concealed hinges. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and document pocket.

Enclosure Side, Rear and Roof Panels:

Removable panels are fabricated using 1.2mm powder coated galvanised steel sheet.

Enclosure Base:

Base is 100mm

Enclosure Door Seal:

High quality EPDM replaceable door seal

Enclosure Lock:

4 point locking system with key-lock swing handle.

Enclosure Device Mounting Plate:

The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.

Earthing:

All panels are earthed to provide earthing continuity.

Surface Treatment:

UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness.
– Colour: RAL7035 (Other colours available upon request).
– Colour of Base: RAL9005 (Other colours available upon request).

Accessories & Baying Kits:

A full range of accessories are available including baying kits.

– Baying Kit to suit Freestanding Cabinets – IP-MFSBAYKIT.
– Inner Doors to suit Freestanding Cabinets.
– Shelf Kits to suit Freestanding Cabinets.
– Laptop Drawers to suit Freestanding Cabinets.
– Cover Plates & Partial Mounting Plates to suit Freestanding Cabinets.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low Voltage Switchgear and Controlgear Assemblies: Certificate 0406176-
TSE-02/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Products are manufactured to Quality, Safety and Environmental standards.

REQUEST PRICE & AVAILABILITY
Our sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

6 + 6 =

Electrical Cabinet

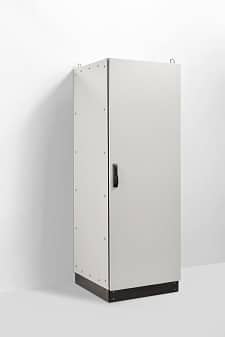

IP55 Electrical Cabinet

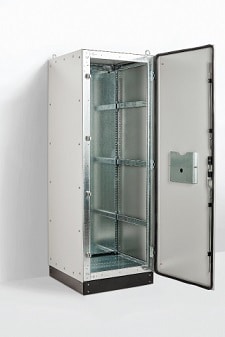

Electrical Cabinet Assembly Diagram

Floor Standing Electrical Cabinet Sizes



Part NumberEnclosure Size (mm)Data SheetDrawingDrawingAccessories
SKUH x W x DPDFPDF.dwgInner Door
IP-MFS1624040-KIT1620 x 400 x 400PDFPDF.dwgIP-MFSID16240
IP-MFS1626040-KIT1620 x 600 x 400PDFPDF.dwgIP-MFSID16260
IP-MFS1626060-KIT1620 x 600 x 600PDFPDF.dwgIP-MFSID16260
IP-MFS1626080-KIT1620 x 600 x 800PDFPDF.dwgIP-MFSID16260
IP-MFS1628040-KIT1620 x 800 x 400PDFPDF.dwgIP-MFSID16280
IP-MFS1628060-KIT1620 x 800 x 600PDFPDF.dwgIP-MFSID16280
IP-MFS1628080-KIT1620 x 800 x 800PDFPDF.dwgIP-MFSID16280
IP-MFS16210080-KIT1620 x 1000 x 800PDFPDF.dwgIP-MFSID162100
IP-MFS1864040-KIT1860 x 400 x 400PDFPDF.dwgIP-MFSID18640
IP-MFS1866040-KIT1860 x 600 x 400PDFPDF.dwgIP-MFSID18660
IP-MFS1866060-KIT1860 x 600 x 600PDFPDF.dwgIP-MFSID18660
IP-MFS1866080-KIT1860 x 600 x 800PDFPDF.dwgIP-MFSID18660
IP-MFS1868060-KIT1860 x 800 x 600PDFPDF.dwgIP-MFSID18680
IP-MFS1868080-KIT1860 x 800 x 800PDFPDF.dwgIP-MFSID18680
IP-MFS18610060-KIT1860 x 1000 x 600PDFPDF.dwgIP-MFSID186100
IP-MFS18610080-KIT1860 x 1000 x 800PDFPDF.dwgIP-MFSID186100
IP-MFS18612040-KIT1860 x 1200 x 400PDFPDF.dwg-
IP-MFS18612060-KIT1860 x 1200 x 600PDFPDF.dwg-
IP-MFS18612080-KIT1860 x 1200 x 800PDFPDF.dwg-
IP-MFS2024040-KIT2020 x 400 x 400PDFPDF.dwgIP-MFSID20240
IP-MFS2026040-KIT2020 x 600 x 400PDFPDF.dwgIP-MFSID20260
IP-MFS2026060-KIT2020 x 600 x 600PDFPDF.dwgIP-MFSID20260
IP-MFS2026080-KIT2020 x 600 x 800PDFPDF.dwgIP-MFSID20260
IP-MFS2028040-KIT2020 x 800 x 400PDFPDF.dwgIP-MFSID20280
IP-MFS2028060-KIT2020 x 800 x 600PDFPDF.dwgIP-MFSID20280
IP-MFS2028080-KIT2020 x 800 x 800PDFPDF.dwgIP-MFSID20280
IP-MFS20210060-KIT2020 x 1000 x 600PDFPDF.dwgIP-MFSID202100
IP-MFS20210080-KIT2020 x 1000 x 800PDFPDF.dwgIP-MFSID202100
IP-MFS20212080-KIT2020 x 1200 x 800PDFPDF.dwg-
