Electrical Enclosures

Electrical Enclosures

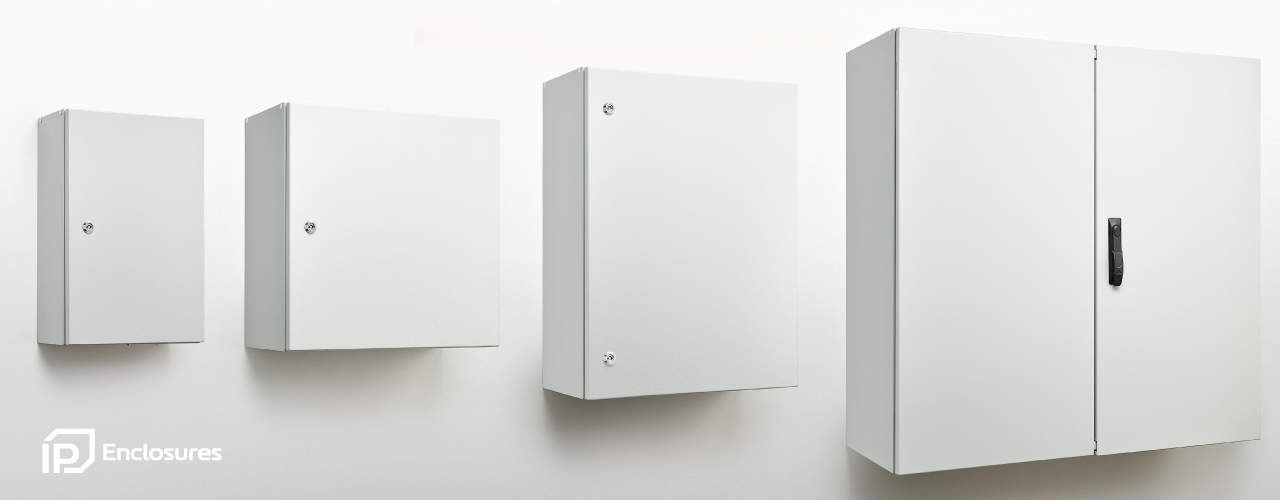

Electrical Enclosures are designed to house low voltage electrical equipment including switchgear and controlgear assemblies. Our electrical enclosures are manufactured to the highest standards using world-class international manufacturing facilities in Europe. The steel range is fabricated using galvanised steel and are powder coated. They comply to IEC/EN 62208, IEC/EN 61439 and IEC/EN/AS 60529 up to IP66 IK10. IP Enclosures electrical enclosures incorporate many advanced design features as standard inclusions and have been chosen by many organisations as their standard electrical enclosure system.

IP66 Electrical Enclosures

The S1 range of electrical enclosures are rated for protection up to IP66. This range is wall-mounted, powder-coated galvanised steel, single door construction suitable for heavy duty applications.

Features & Specifications

Protection: IP66 IK10 (NEMA 4)

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, UL, RoHS, CE, UKCA

IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 6 kV
Rated Current: 630A
Rated Peak Withstand Current: 40kA
Rated Short-Time Withstand Current: 20kA (Busbar)
Rated Conditional Short Circuit Current: 20kA
Rated Frequency: 50Hz

Material:

– Body: 1.2mm galvanised steel sheet (up to 700x500x250) 1.5mm galvanised steel sheet (800x600x200 and above)
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is fabricated using galvanised steel sheet (1.2mm-1.5mm). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. A galvanised steel gland plate is incorporated into the bottom face. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Chrome 5mm double bit insert quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low voltage switchgear and controlgear assemblies: Certificate AB-0341-T,
23-297-R1-N1-1
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1
UL: Listing Number E534557

Products are manufactured to Quality, Safety and Environmental standards.

REQUEST PRICE & AVAILABILITY
Our sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

4 + 8 =

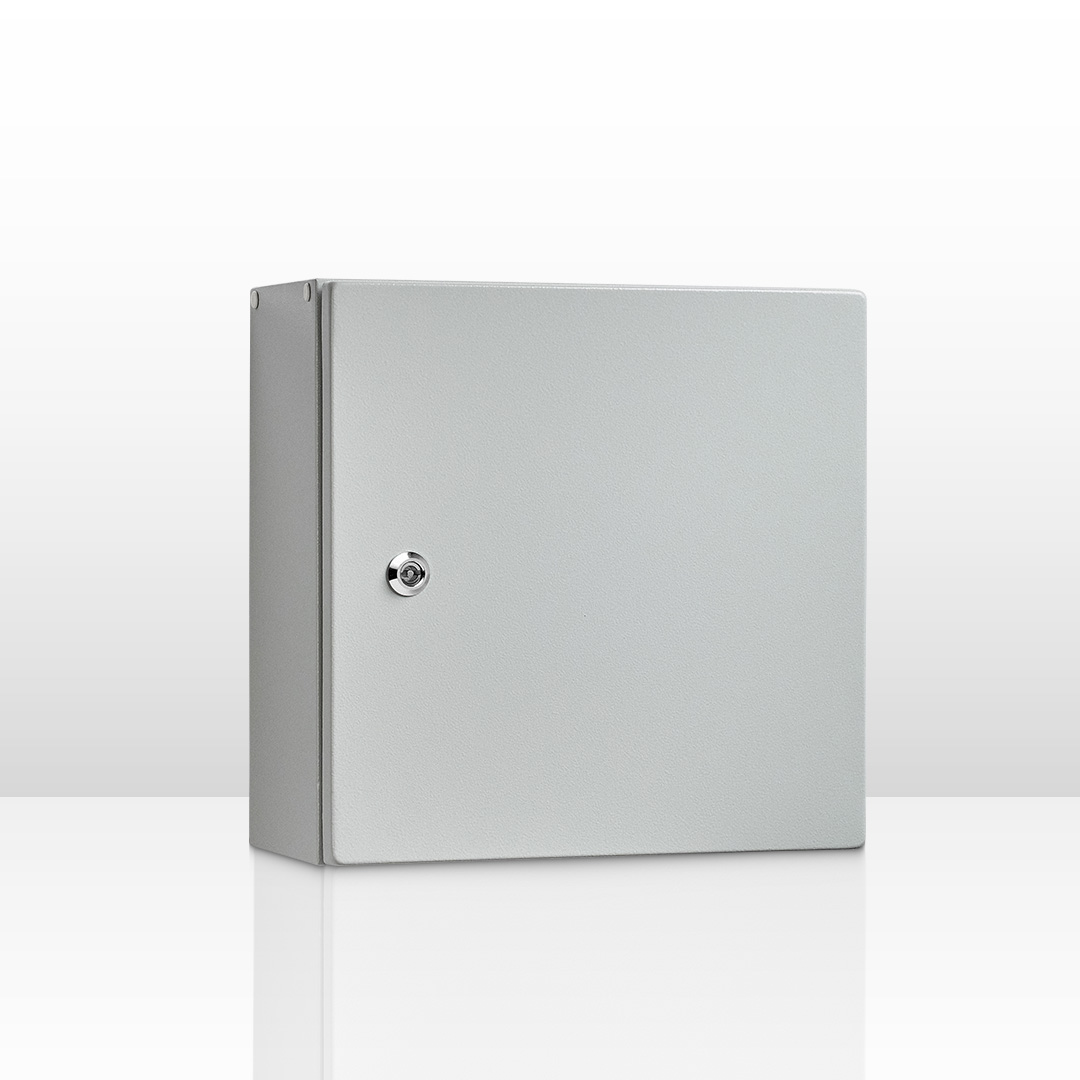

Electrical Enclosure
IP66 Electrical Enclosure

IP66 Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)Data SheetDrawingAutoCADSolidWorks
SKUH x W x DPDFPDF*.dwg*.sldprt
IP-302015300 x 200 x 150PDFPDF2D3D
IP-302515300 x 250 x 150PDFPDF2D3D
IP-303015300 x 300 x 150PDFPDF2D3D
IP-303020300 x 300 x 200PDFPDF2D3D
IP-403015400 x 300 x 150PDFPDF2D3D
IP-403020400 x 300 x 200PDFPDF2D3D
IP-404020400 x 400 x 200PDFPDF2D3D
IP-404030400 x 400 x 300PDFPDF2D3D
IP-503015500 x 300 x 150PDFPDF2D3D
IP-503020500 x 300 x 200PDFPDF2D3D
IP-504020500 x 400 x 200PDFPDF2D3D
IP-504025500 x 400 x 250PDFPDF2D3D
IP-505020500 x 500 x 200PDFPDF2D3D
IP-505025500 x 500 x 250PDFPDF2D3D
IP-505030500 x 500 x 300PDFPDF2D3D
IP-604020600 x 400 x 200PDFPDF2D3D
IP-604025600 x 400 x 250PDFPDF2D3D
IP-604030600 x 400 x 300PDFPDF2D3D
IP-606020600 x 600 x 200PDFPDF2D3D
IP-606030600 x 600 x 300PDFPDF2D3D
IP-606040600 x 600 x 400PDFPDF2D3D
IP-705020700 x 500 x 200PDFPDF2D3D
IP-705025700 x 500 x 250PDFPDF2D3D
IP-804030800 x 400 x 300PDFPDF2D3D
IP-806020800 x 600 x 200PDFPDF2D3D
IP-806025800 x 600 x 250PDFPDF2D3D
IP-806030800 x 600 x 300PDFPDF2D3D
IP-806040800 x 600 x 400PDFPDF2D3D
IP-808020800 x 800 x 200PDFPDF2D3D
IP-808030800 x 800 x 300PDFPDF2D3D
IP-808040800 x 800 x 400PDFPDF2D3D
IP-10060251000 x 600 x 250PDFPDF2D3D
IP-10060301000 x 600 x 300PDFPDF2D3D
IP-10080301000 x 800 x 300PDFPDF2D3D
IP-10080401000 x 800 x 400PDFPDF2D3D
IP-12060301200 x 600 x 300PDFPDF2D3D
IP-12080301200 x 800 x 300PDFPDF2D3D
IP-12080401200 x 800 x 400PDFPDF2D3D
IP-14080401400 x 800 x 400PDFPDF2D3D
IP-16080401600 x 800 x 400PDFPDF2D3D
IP-200100402000 x 1000 x 400PDFPDF2D3D

IP66 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)Data SheetDrawingAutoCADSolidWorks
SKUH x W x DPDFPDF*.dwg*.sldprt
IP-L304015300 x 400 x 150PDFPDF2D3D
IP-L304020300 x 400 x 200PDFPDF2D3D
IP-L406020400 x 600 x 200PDFPDF2D3D
IP-L406030400 x 600 x 300PDFPDF2D3D
IP-L608030600 x 800 x 300PDFPDF2D3D

IP55 Electrical Enclosures

The S2 range of electrical enclosures are rated for protection up to IP55. This range is wall-mounted, powder-coated galvanised steel, double door construction suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP55 IK10 (NEMA 3)

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS, CE, UKCA

IEC/EN 61439 Certified Test Ratings:
Rated Voltage: 400 V AC
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 6 kV
Rated Current: 630A
Rated Peak Withstand Current: 40kA
Rated Short-Time Withstand Current: 20kA (Busbar)
Rated Conditional Short Circuit Current: 20kA
Rated Frequency: 50Hz

Material:

– Body: 1.5mm galvanised steel sheet
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Finish:

Powdercoated RAL7035 (Other colours available upon request)

Enclosure Body:

The robust monoblock body is fabricated using 1.5mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Gland plates are incorporated into the bottom face. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Double Doors:

The robust surface mounted doors are fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. The doors are designed for a 110° opening. Each door contains integral cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1610.05.01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low voltage switchgear and controlgear assemblies: Certificate AB-0341-T,
23-314-R1-N1-1
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Products are manufactured to Quality, Safety and Environmental standards.

IP55 Electrical Enclosure
IP55 Double Door Electrical Enclosure

IP55 Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)Data SheetDrawingAutoCADSolidWorks
SKUH x W x DPDFPDF*.dwg*.sldprt
IP-100100301000 x 1000 x 300PDFPDF2D3D
IP-100100401000 x 1000 x 400PDFPDF2D3D
IP-120100301200 x 1000 x 300PDFPDF2D3D
IP-120100401200 x 1000 x 400PDFPDF2D3D
IP-120120301200 x 1200 x 300PDFPDF2D3D
IP-120120401200 x 1200 x 400PDFPDF2D3D

IP55 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)Data SheetDrawingAutoCADSolidWorks
SKUH x W x DPDFPDF*.dwg*.sldprt
IP-L4010030 400 x 1000 x 300PDFPDF2D3D
IP-L4010040 400 x 1000 x 400PDFPDF2D3D
IP-L6010030 600 x 1000 x 300PDFPDF2D3D
IP-L6010040 600 x 1000 x 400PDFPDF2D3D
IP-L4012030 400 x 1200 x 300PDFPDF2D3D
IP-L4012040 400 x 1200 x 400PDFPDF2D3D
IP-L6012030 600 x 1200 x 300PDFPDF2D3D
IP-L6012040 600 x 1200 x 400PDFPDF2D3D
