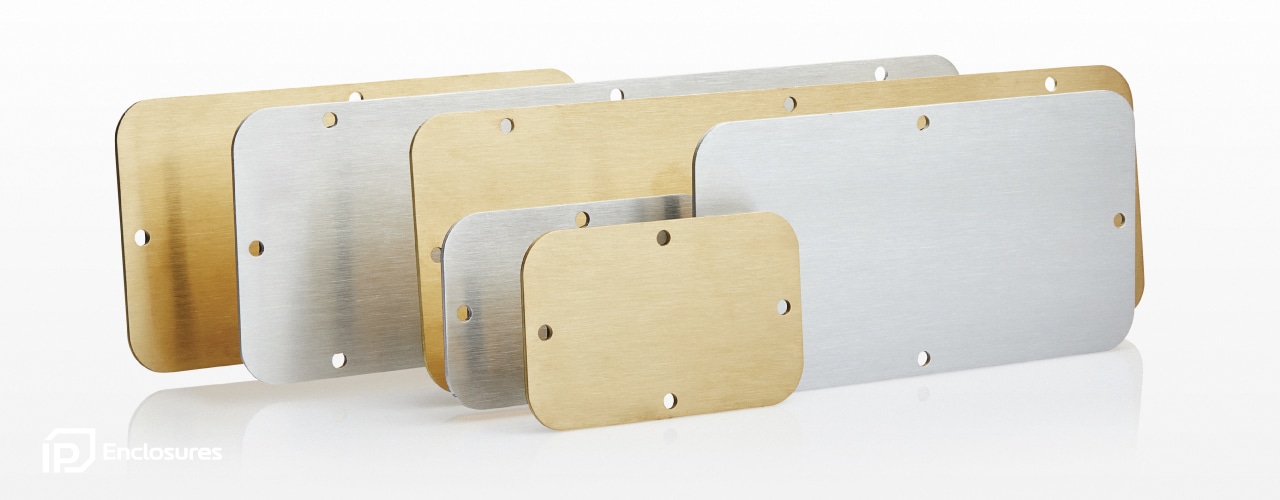

Gland Plates
IP Enclosures provide a range of electrical enclosure gland plates. These gland plates are to designed to replace existing standard gland plates with brass gland plates or aluminium gland plates to meet specification requirements. They are available in various thicknesses including 3mm and 5mm. Simply remove the standard gland plate and replace it with the optional brass or aluminium gland plate. Gland plates are provided with a polyurethane seal, similar to standard gland plates, to ensure integrity of the electrical enclosure IP rating is maintained.
Material:
– Gland Plate: 3mm to 5mm Brass and Aluminium
– Seal: Machine-applied full perimeter UL listed Polyurethane seal foamed in place. Temperature resistance -40°C to 80°C (160°C short term loading).
Brass Gland Plates
| Part Number SKU | Size x Description |
|---|---|
| IP-GPB3-1 | 110 x 56 x 3mm Brass Gland Plate |
| IP-GPB3-2 | 214 x 95 x 3mm Brass Gland Plate |
| IP-GPB3-3 | 364 x 95 x 3mm Brass Gland Plate |
Aluminium Gland Plates
| Part Number SKU | Size x Description |
|---|---|
| IP-GPA3-1 | 110 x 56 x 3mm Aluminium Gland Plate |
| IP-GPA3-2 | 214 x 95 x 3mm Aluminium Gland Plate |
| IP-GPA3-3 | 364 x 95 x 3mm Aluminium Gland Plate |
| IP-GPA5-1 | 110 x 56 x 5mm Aluminium Gland Plate |
| IP-GPA5-2 | 214 x 95 x 5mm Aluminium Gland Plate |
| IP-GPA5-3 | 364 x 95 x 5mm Aluminium Gland Plate |
Size Selection Table
| Enclosure Size (mm) | Gland Plate Size (mm) | Gland Plate Quantity | 3mm Brass Gland Plate | 3mm Aluminium Gland Plate | 5mm Aluminium Gland Plate |
|---|---|---|---|---|---|
| W x D | W x D | QTY | SKU | SKU | SKU |
| 200 x 150 | 110 x 56 | 1 | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
| 250 x 150 | 110 x 56 | 1 | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
| 300 x 150 | 110 x 56 | 1 | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
| 300 x 200 | 214 x 95 | 1 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 400 x 200 | 214 x 95 | 1 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 400 x 250 | 214 x 95 | 1 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 500 x 200 | 364 x 95 | 1 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 600 x 200 | 364 x 95 | 1 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 600 x 300 | 364 x 95 | 1 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 600 x 400 | 364 x 95 | 1 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 800 x 200 | 214 x 95 | 2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 800 x 300 | 214 x 95 | 2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 800 x 400 | 214 x 95 | 2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
| 1000 x 300 | 364 x 95 | 2 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 1000 x 400 | 364 x 95 | 2 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 1200 x 300 | 364 x 95 | 2 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
| 1200 x 400 | 364 x 95 | 2 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
