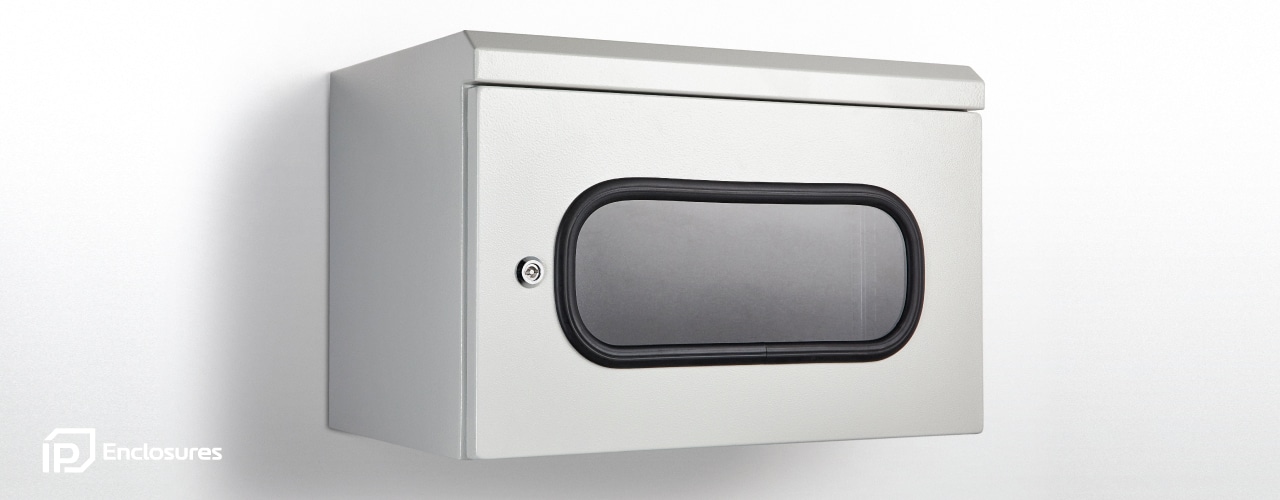

Transparent Doors

IP Enclosures offer steel transparent glazed doors engineered for compatibility with its range of electrical enclosures. Supplied as a standard accessory, transparent doors allow quick replacement by removing the existing door. The doors incorporate a transparent viewing window panel manufactured from polycarbonate material and are exclusively sold and available in the UK region to ensure compliance with applicable UK electronics and electrical standards.

Features and Specifications

Protection: Complies with IP66
Standard: IEC/EN 60529, RoHS, CE, UKCA

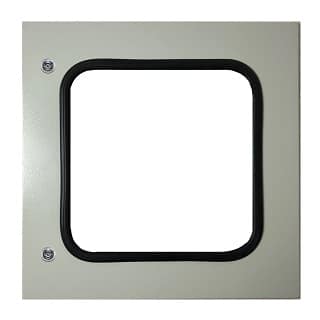

WINDOORS – Powder-Coated Steel

Material:

– Enclosure Door: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane
– Viewing Window Pane: 4mm Polycarbonate

Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening.

Viewing Window Panel:

The viewing window panel is made from 4.0mm thick Polycarbonate.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

5mm Double Bit Quarter Turn Lock. A full range of locking solutions are available upon request.

Surface Treatment:

UL approved AkzoNobel epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

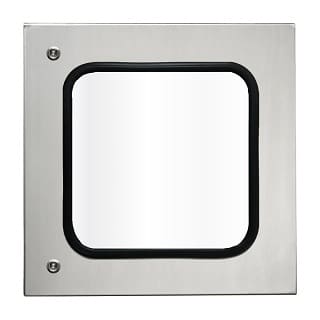

WINDOORS – Grade 316 Stainless Steel

Material:

– Enclosure Door: 1.5mm grade 316L stainless steel
– Viewing Window Panel: 4.0mm Polycarbonate
– Enclosure Seal: Polyurethane

Door:

The surface mounted door is 1.5mm Grade 316L Stainless Steel. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening.

Viewing Window Panel:

The viewing window panel is made from 4.0mm thick Polycarbonate.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

Grade 316L Stainless Steel 8mm Square Drive Quarter Turn Lock. A full range of locking solutions are available upon request.
