Electrical Enclosure Inner Doors

Inner Door Escutcheons for Electrical Enclosures

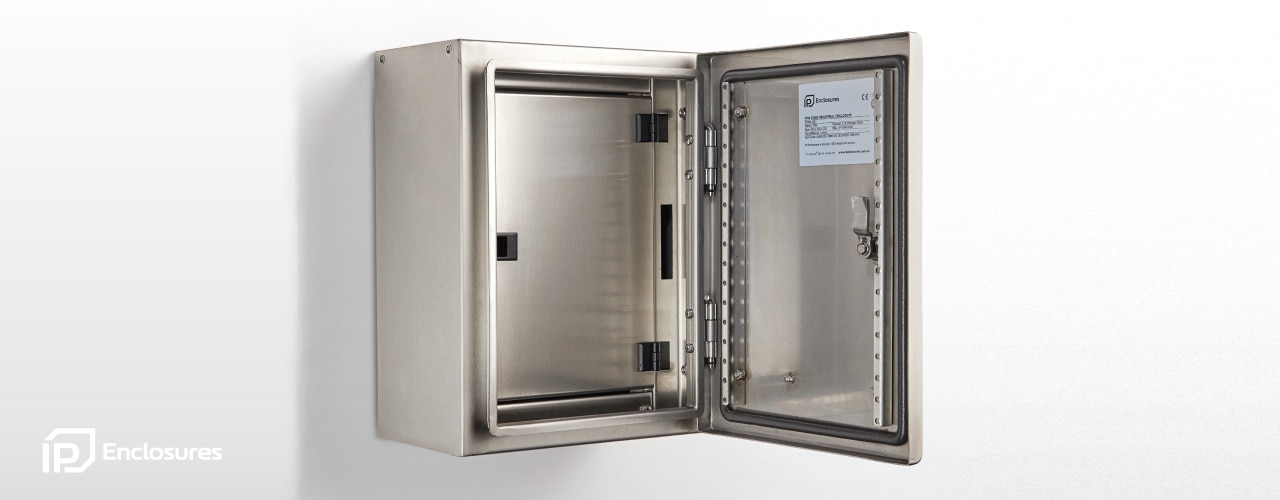

An Inner door escutcheon is an optional accessory that can be easily fitted into our new or existing electrical enclosures. It is important to check the depth of the enclosure to ensure that the minimum distance between the electrical components and inner door is maintained. Enclosures up to 400mm deep are available to ensure large components can be safely housed behind inner door escutcheons.

Clearance Dimensions

Clearance between inner door and outer door (in front of inner door): 68mm
Clearance between inner door and device mounting plate (behind inner door):
150D Enclosure: 67mm
200D Enclosure: 117mm
250D Enclosure: 167mm
300D Enclosure: 217mm
400D Enclosure: 317mm

Inner Doors – Powder-Coated Steel

Steel inner doors are fabricated using 1.2mm to 1.5mm galvanised steel sheet. UL approved epoxy polyester powder coated with a textured RAL7035 finish to 80-120 micron average thickness. Coloured inner doors are available if required.

Part NumberDescriptionDatasheetsDrawingsDrawings
SKUTo Suit Enclosure H x W.pdf.pdf.dwg
IP-PSID3020300 x 200.pdf.pdf.dwg
IP-PSID3025300 x 250.pdf.pdf.dwg
IP-PSID3030300 x 300.pdf.pdf.dwg
IP-PSID4030400 x 300.pdf.pdf.dwg
IP-PSID4040400 x 400.pdf.pdf.dwg
IP-PSID5030500 x 300.pdf.pdf.dwg
IP-PSID5040500 x 400.pdf.pdf.dwg
IP-PSID5050500 x 500.pdf.pdf.dwg
IP-PSID6040600 x 400.pdf.pdf.dwg
IP-PSID6060600 x 600.pdf.pdf.dwg
IP-PSID7050700 x 500.pdf.pdf.dwg
IP-PSID8060800 x 600.pdf.pdf.dwg
IP-PSID8080800 x 800.pdf.pdf.dwg
IP-PSID100601000 x 600.pdf.pdf.dwg
IP-PSID100801000 x 800.pdf.pdf.dwg
IP-PSID1001001000 x 1000.pdf.pdf.dwg
IP-PSID120601200 x 600.pdf.pdf.dwg
IP-PSID120801200 x 800.pdf.pdf.dwg
IP-PSID1201001200 x 1000.pdf.pdf.dwg
IP-PSID1201201200 x 1200.pdf.pdf.dwg
Inner Door for Electrical Enclosure

Inner Doors – Grade 316 Stainless Steel

Stainless Steel inner doors are fabricated using 1.5mm Grade 316/316L Stainless Steel.

Part NumberDescriptionDatasheetsDrawingsDrawings
SKUTo Suit Enclosure H x W.pdf.pdf.dwg
IP-SSID3020300 x 200.pdf.pdf.dwg
IP-SSID3025300 x 250.pdf.pdf.dwg
IP-SSID3030300 x 300.pdf.pdf.dwg
IP-SSID4030400 x 300.pdf.pdf.dwg
IP-SSID4040400 x 400.pdf.pdf.dwg
IP-SSID5040500 x 400.pdf.pdf.dwg
IP-SSID5050500 x 500.pdf.pdf.dwg
IP-SSID6040600 x 400.pdf.pdf.dwg
IP-SSID6060600 x 600.pdf.pdf.dwg
IP-SSID7050700 x 500.pdf.pdf.dwg
IP-SSID8060800 x 600.pdf.pdf.dwg
IP-SSID8080800 x 800.pdf.pdf.dwg
IP-SSID100601000 x 600.pdf.pdf.dwg
IP-SSID100801000 x 800.pdf.pdf.dwg
IP-SSID1001001000 x 1000.pdf.pdf.dwg
IP-SSID120801200 x 800.pdf.pdf.dwg
IP-SSID1201001200 x 1000.pdf.pdf.dwg
IP-SSID1201201200 x 1200.pdf.pdf.dwg
Stainless Steel Inner Door for Electrical Enclosure
